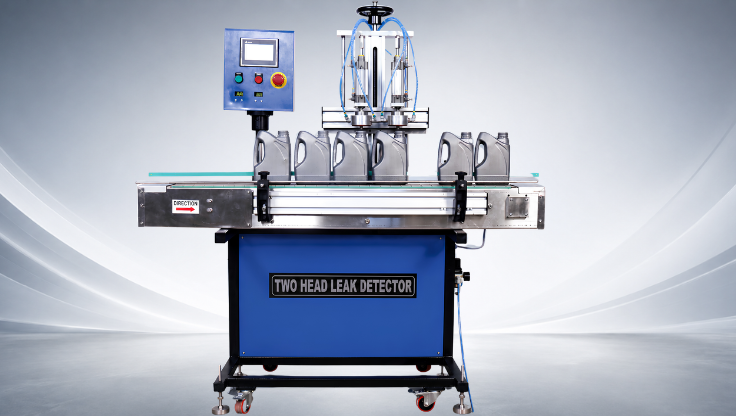

The automatic pre-fill leak detector tests empty bottles and containers for leaks before they reach the filler. It uses the pressure decay method to find pin-holes in moulded bottles and containers.


Key Features

  • Detects pin-holes as small as 50 microns.
  • Low power use: [50 W or 500 W;].
  • Continuous conveying, with no stoppers.
  • Runs on a safe 24 V DC control voltage.
  • Quick changeover between SKUs.
  • Stored recipes for each SKU.
  • PLC control with a touch-screen HMI.

Technical Specifications

Speed 56–64 bottles per minute (eighthead model)
Container materials PET, HDPE, PP, aluminium, tin, stainless steel
SKU Testing Range Up to 5 Litres
Container size up to 5 L
Methodology Pressure Decay Method
Machine Type Automatic
Power Supply Requirement 230 V AC, 50 Hz, 500 W max.
Compressed air 10 CFM at 5–7 kg/cm² (about 5–7 bar)
Frame epoxy-painted mild steel or SS304
Dimensions (L × W × H): 4 × 1.5 × 2 m (eighthead model)
Conveyor stainless steel or acetal slat chain, 4.5 in (114 mm) wide as standard; width varies with bottle size
Conveyor frame epoxy-painted mild steel or SS304 C-channel
Conveyor Dimensions 4 m × 0.2 m
Note Speed depends on bottle size, number of heads, conveyor speed and test time.
