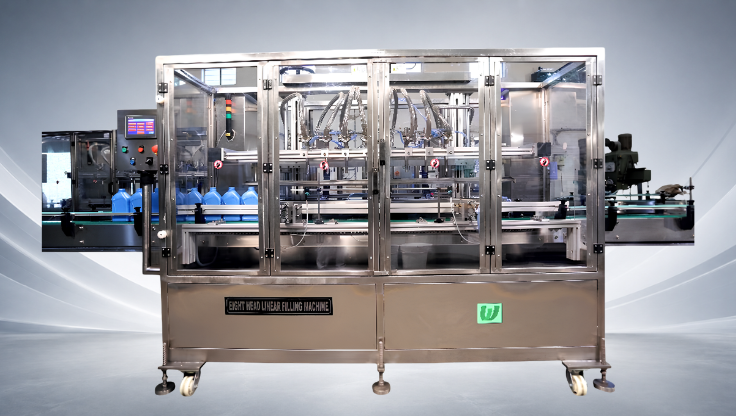

Weigh-metric Filling Machine with Mass Flow Meter is the highest version model suitable for all types of liquids (Conductive, non-conductive, viscous, and non-viscous). It is preferred where customer needs CIP/SIP system for different liquids to be filled and to avoid cross contamination. Mass Flow Meter is a through pipe system which gets cleaned easily. It is highly accurate, durable and require negligible maintenance. It works for high viscosity liquids also. Mass of product remain constant in all conditions (change in temperature, Change in viscosity).The Mass flow meter Calculate mass hence you don’t need to change any parameters, if The temperature or Viscosity of the product changes.



Key Features

  • Very High accuracy filling of 0.15% of full scale value.
  • Mass and density calculation inline during the filling process.
  • Fast filling inline.
  • Through tube system hence easily SIP and CIP can be performed.
  • Recipe based system for ease of changeover from one sku to another.
  • PLC and HMI based system .Optional SCADA and IPC system can be incorporated.

Technical Specifications

Speed of Operation 40 BPM for 1 Litre @ Eight Head
Accuracy 0.15% of Full Scale Value
Suitable for Viscosity up to 5000 CST
Filling Range 100 ml to 1 L, 1 L to 5 L, 5 L to 30 L
Machine Type Automatic – On the Fly Filling Nozzle
Power Supply Requirement 415 VAC, 50 Hz, 5 KW Max.
Air Supply Requirement 2 CFM at 5 to 6 Kg/cm²
Main Frame MOC MSEP / SS304
Contact Part MOC SS304 for Lube Oil / SS316 for Edible Oil
Machine Dimensions 4.5 m × 2 m × 2 m
Conveyor Type SS Slat Chain (4.5" Width), varies according to bottle width
Conveyor MOC SS304 C-Channel
Conveyor Dimensions 4.5 m × 0.2 m
Other Details If the material has foaming properties, servo deep diving is required. The standard machine is provided with a pneumatic nozzle diving arrangement.
Note Speed depends on viscosity, container mouth size, and foaming characteristics.
