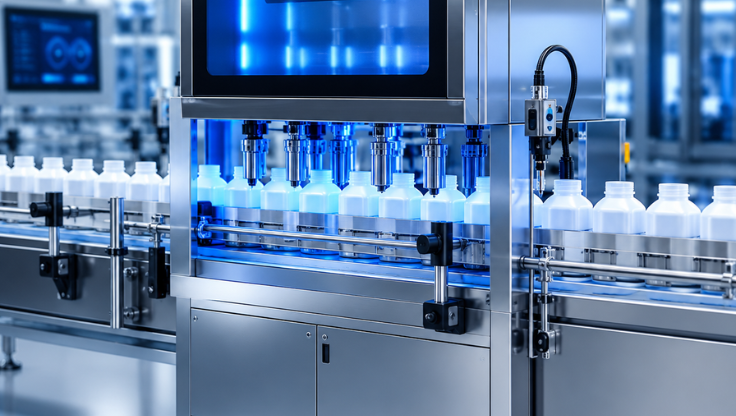

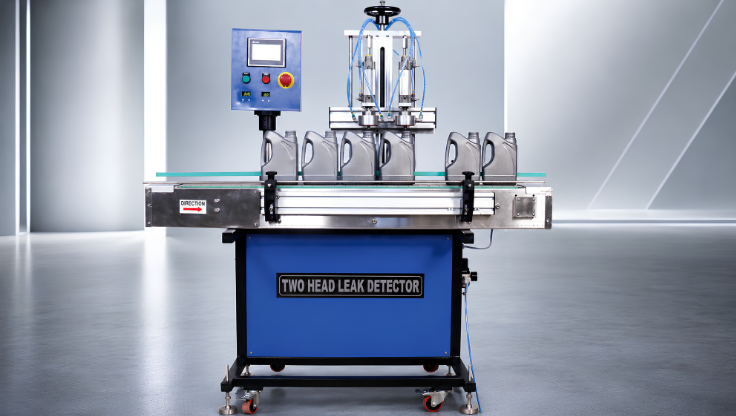

Automatic Prefill Bottle Leak Detector – is designed to validate empty bottle before filling operation. It works on the principle of Pressure Decay Method to test pin hole in moulded bottle/containers.
Key Features
- Can check pin holes as small as 50 micron hole size.
- Power requirement of only 50Watts.
- Stopper less conveying of bottles.
- Safe voltage of only 24vdc for running the machine
- Easy changeover from one sku to another.
- Recipe based system for different skus.
- PLC and HMI based machine for ease of operation.
Technical Specifications
| Speed of Operation | 56 - 64 BPM (Eight Head) |
|---|---|
| Bottle/Container MOC | PET / HDPE / PP / Aluminium / Tin / SS |
| SKU Testing Range | Up to 5 Litres |
| Neck Diameter | 20 mm to 80 mm |
| Methodology | Pressure Decay Method |
| Machine Type | Automatic |
| Power Supply Requirement | 230 VAC, 50 Hz, 500 W Max. |
| Air Supply Requirement | 10 CFM at 5–7 Kg/cm² |
| Main Frame MOC | MSEP / SS304 |
| Machine Dimensions | 4 m × 1.5 m × 2 m (Eight Head) |
| Conveyor Type | SS/Acetal Slat Chain (4.5" Width), varies according to bottle width |
| Conveyor MOC | MSEP / SS304 C-Channel with Acetal Slat Chain |
| Conveyor Dimensions | 4 m × 0.2 m |
| Other Details | Speed can vary according to the bottle size, number of heads, speed of conveyer and testing time. |
