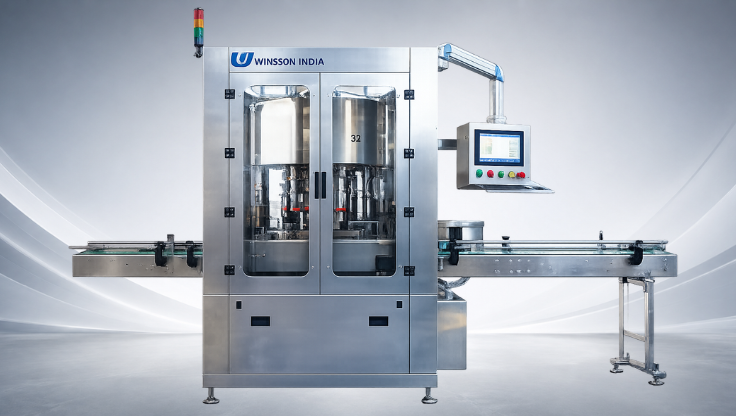

This machine ensures accurate and non-invasive validation of sealed bottles/Vial for micro leaks as small as 50 microns. It is an In-line Multi-head machine for production line. It works on Vacuum Decay Method and offers real-time testing with 21 CFR Part 11 compliance. Its automatic features, including drying and seamless changeover, uphold stringent quality standards without contamination.


Key Features

  • 100% Inline Validation of Package Integrity, Detection of Defective Containers Before Release
  • Non-Destructive Inspection
  • Automatic Rejection of Failed Containers
  • Vacuum Decay & Mass Extraction Technology
  • Supports USP <1207> Deterministic Approach
  • Based on ASTM F2338 Methodology
  • Audit Trail & Data Integrity Features

Technical Specifications

Speed of Operation 50 BPM for 250 ml (16 Heads), depends on the size of the bottle & the test required for identification of the leak
Inspection Capabilities Micro leak detection up to 50 micron hole size
Container Type Induction Sealed / Screw Capped / ROPP Capped
Container Dimensions Standard vials and bottles from 2 to 1000 ml
Application Validation of Vials & Bottles (Glass / Plastic / Aluminium) after Seal
Suitable For Semi-solid, Powder, Liquid Product
Methodology Differential Vacuum Detection (Vacuum Decay Method)
Inspection Features Non-invasive, Non-destructive
Power Supply Req. 415 VAC, 50 Hz, 4 KW Max.
Air Supply Req. 30 CFM at 5 to 7 Kg/cm², 10 HP
Main Frame MOC SS316
Contact Part MOC SS316
